UltraFast - SAVANNA-HP
High power stretched flexible hollow core fiber pulse compresso

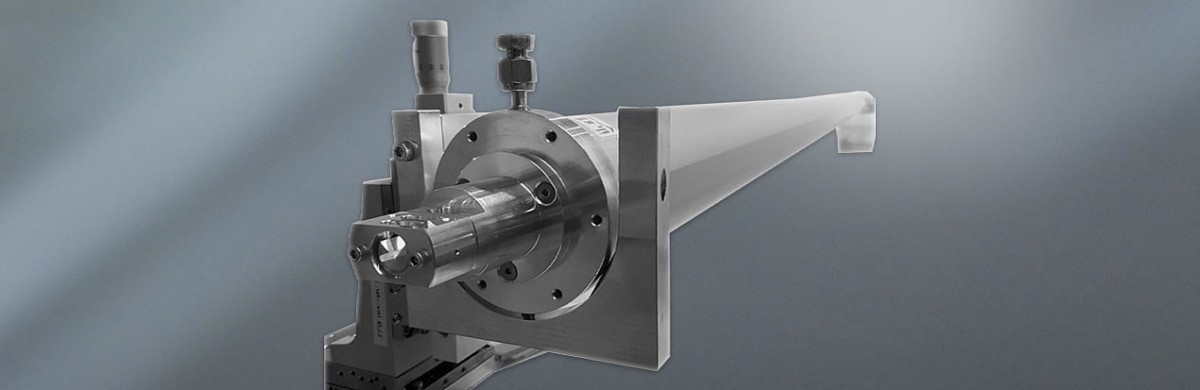

High power stretched flexible hollow core fiber pulse compressor

The SAVANNA-HP is the result of a collaboration between UltraFast Innovations and the Institute for Nanophotonics in Göttingen IFNANO. The stretched flexible hollow core fiber (SF-HCF) compressor spectrally broadens high-energy femtosecond input pulses by nonlinear interaction with a noble gas of adjustable gas pressure inside a hollow fiber and subsequently compresses the pulse using chirped mirror technology from UltraFast Innovations. The state of the art SF-HCF technique from IFNANO allows nearly ideal wave guiding reducing the losses to a minimum and allows accumulation of self-phase modulation over an interaction length of up to 8 m. The incoupling is protected by a high power shield allowing extreme input parameters of few tens of mJ pulses and an average power of up to 20 W (with active cooling up to several hundred Watts). Combining the SF-HCFs from IFNANO and our chirped mirror compression, we provide an unmatched compression unit for today's state of the art lasers.




 Input Pulse Duration

 up to 60 fs (as short as possible)

 up to hundreds of fs (as short as possible)

 Input pulse energy

 0.5 - 2 mJ (optimum: 1 - 1.5 mJ)

 up to few tens of mJ

 Repetition rate

 1 - 10 kHz


 Typical compression factor

 5 - 6 x

 5 - 30 x

 Fiber transmission

 up to 70%

 close to the theoretical limit

 White light spectral bandwidth

 270 - 1000 nm (achievable with optimal input)



 400 - 900 nm (with commercial 25 fs laser)



 Broadband source for spectroscopy applications

 Active cooling for average powers > 20 W

 Fiber length


 up to 8 m

 Supported input peak power


 Up to 400 GW at 10 W average power

 Supported input average power


 Up to several hundred Watts at 125 GW peak power


 300 x 60 cm2

 300 - 1000 cm x 60 cm
