Solutions for Spectroscopy, TCSPC & Imaging
EMCCD, Intensified CCD, EMICCD
All Products 8
.png)
EMCCD Camera
4800fps, 119,000spectra/sec, UV coating과 NIR영역의 Etaloning 제거하는 Excelon3 coating 까지 다양한 용도의 EMCCD
High-resolution, back-illuminated EMCCD.
Deep Cooling to -90℃, EM Gain Calibration.
512BX3 - 16x 16 μm, 8.2x8.2
1KBX3-10um - 10x10 μm, 10.2x10.2
1024BX3 - 13x 3 μm, 13.3x13.3
Ultralow binned read noise
LabVIEW® and MATLABl®
응용 : Single Molecule Detection, Spectroscopy, Chemiluminescence, Astronomy, BEC, Adaptive Optics, Hyperspectral Imaging, Phosphor Imaging, Tomography
High-resolution, back-illuminated EMCCD.
Deep Cooling to -90℃, EM Gain Calibration.
512BX3 - 16x 16 μm, 8.2x8.2
1KBX3-10um - 10x10 μm, 10.2x10.2
1024BX3 - 13x 3 μm, 13.3x13.3
Ultralow binned read noise
LabVIEW® and MATLABl®
응용 : Single Molecule Detection, Spectroscopy, Chemiluminescence, Astronomy, BEC, Adaptive Optics, Hyperspectral Imaging, Phosphor Imaging, Tomography
ProEM 1600 EMCCD
Teledyne Princeton Instruments EMCCD
High-resolution, back-illuminated EMCCD.
High UV-NIR Sensitivity. >95% QE
Deep Cooling to -90℃, EM Gain Calibration.
1600 x 200, 1600 x 400, 16 x 16 μm
< 0.01 e-/p/s; -60℃, GigE interface
Ultralow binned read noise
LabVIEW® and MATLABl®
응용 : Scanning Confocal Spectroscopy, Hyperspectral Imaging and Single Molecule Spectroscopy
High-resolution, back-illuminated EMCCD.
High UV-NIR Sensitivity. >95% QE
Deep Cooling to -90℃, EM Gain Calibration.
1600 x 200, 1600 x 400, 16 x 16 μm
< 0.01 e-/p/s; -60℃, GigE interface
Ultralow binned read noise
LabVIEW® and MATLABl®
응용 : Scanning Confocal Spectroscopy, Hyperspectral Imaging and Single Molecule Spectroscopy
.png)

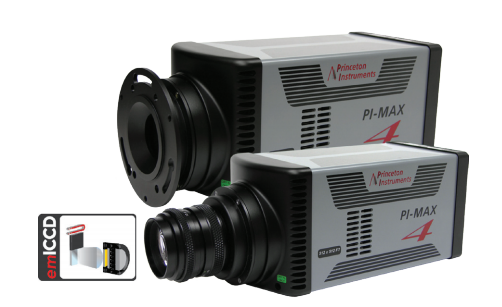

PI-MAX4 EMB
Image Intensifier + EMCCD 조합으로 기존의 모든 ICCD보다 100배 이상의 초고감도를 실현한 PI-MAX4:EMICCD !!
Dual Gain 메커니즘으로 광감도와 linearity를 완벽하게 향샹시킨 Teledyne Princeton Instruments PI-MAX4 EMICCD. 512 x 512, 16 x 16 μm / 1024 x 1024, 13 x 13 μm.
>50% Gen III filmless, LabVIEW SITK®
응용 : FLIM, Time resolved imaging & spectroscopy, Combustion, PLIF, Photon Counting
Dual Gain 메커니즘으로 광감도와 linearity를 완벽하게 향샹시킨 Teledyne Princeton Instruments PI-MAX4 EMICCD. 512 x 512, 16 x 16 μm / 1024 x 1024, 13 x 13 μm.
>50% Gen III filmless, LabVIEW SITK®
응용 : FLIM, Time resolved imaging & spectroscopy, Combustion, PLIF, Photon Counting
.png)

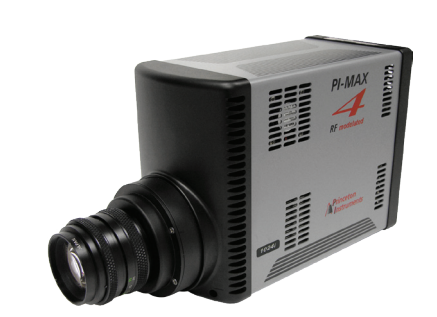

PI-MAX4 1024i
Teledyne Princeton Instruments ICCD
32 MHz / 16-bit digitization
1024 x 1024, 12.8 x 12.8 μm
Repetition rate: Sustained 1MHz
>50% Gen III filmless, LabVIEW SITK®
응용 : FLIM, Time Resolved Imaging & Spectroscopy, Combustion, PLIF, PIV
32 MHz / 16-bit digitization
1024 x 1024, 12.8 x 12.8 μm
Repetition rate: Sustained 1MHz
>50% Gen III filmless, LabVIEW SITK®
응용 : FLIM, Time Resolved Imaging & Spectroscopy, Combustion, PLIF, PIV
PI-MAX4 1024f
Teledyne Princeton Instruments ICCD
국내에 가장 많이 보급된 표준형 ICCD
High frame rate at 10MHz/16-bit digitization,
1 MHz sustained gating repetition rate
Front-illuminated CCD
국내에 가장 많이 보급된 표준형 ICCD
High frame rate at 10MHz/16-bit digitization,
1 MHz sustained gating repetition rate
Front-illuminated CCD
.png)
PI-MAX4: 1024x256
Teledyne Princeton Instruments ICCD
ICCD for Time-resolved spectroscopy
High frame rate at 2MHz/16-bit digitization,
1 MHz sustained gating repetition rate 과 초고감도를 제공하는 시장에서 유일한 ICCD.
e2v CCD 30-11 front illumated MPP CCD.
ICCD for Time-resolved spectroscopy
High frame rate at 2MHz/16-bit digitization,
1 MHz sustained gating repetition rate 과 초고감도를 제공하는 시장에서 유일한 ICCD.
e2v CCD 30-11 front illumated MPP CCD.
.png)
PI-MAX4 2048f
Teledyne Princeton Instruments ICCD.
ideal for Time-resolved imaging and spectroscopy.
High frame rate at 6MHz/16-bit digitization,
1 MHz sustained gating repetition rate 과 초고감도를 제공하는 시장에서 유일한 ICCD.
e2v CCD 4240 full frame CCD
ideal for Time-resolved imaging and spectroscopy.
High frame rate at 6MHz/16-bit digitization,
1 MHz sustained gating repetition rate 과 초고감도를 제공하는 시장에서 유일한 ICCD.
e2v CCD 4240 full frame CCD
.png)
